DS Servo CLS3335 Coreless Metal 45KG/0.095sec@8.4V
DS Servo CLS3335 Coreless Metal 45KG/0.095sec@8.4V
| Kód výrobku: | DS021 |
- 890,00Kč
- Cena bez DPH: 735,54Kč
DS021
Product information "DS Servo CLS3335 Coreless Metal 45KG/0.095sec@8.4V"

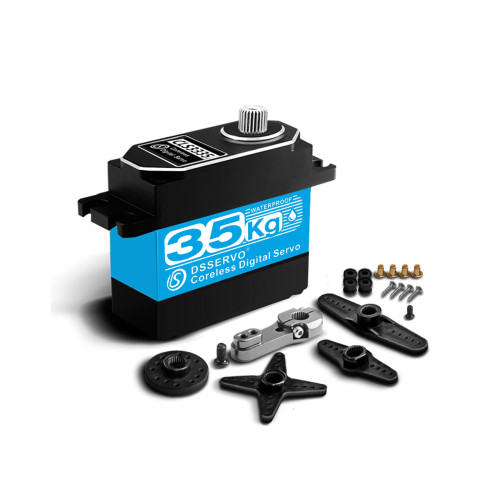

DSSERVO CLS3335 - Powerful Coreless Servo with up to 45 kg·cm Torque
Features:
- Coreless motor for fast response
- Up to 45 kg·cm torque at 8.4V
- Durable stainless steel/aluminum housing
- Precise control with 2µsec deadband
- Fast performance down to 0.095 sec/60°
- PWM compatible, 1520µs / 333Hz frequency
Technical Specifications:
| Voltage: | 5.0V | 7.4V | 8.4V |
| Torque: | 31 kg·cm | 41 kg·cm | 45 kg·cm |
| Speed: | 0.16 sec/60° | 0.11 sec/60° | 0.095 sec/60° |
| Motor: | Coreless | ||
| Gears: | Stainless Steel & Aluminum | ||
| Dimensions: | 40 × 20 × 40.5 mm | ||
| Weight: | 60 g | ||
| Frequency: | 1520µs / 333Hz | ||
| Deadband: | 2µsec | ||
