DS Servo DS3115 Digital 17KG/0.14sec@6.8V - standartní
DS Servo DS3115 Digital 17KG/0.14sec@6.8V - standartní
| Kód výrobku: | DS003 |
- 329,00Kč
- Cena bez DPH: 271,90Kč
DS003
Product information "DS Servo DS3115 Digital 17KG/0.14sec@6.8V"

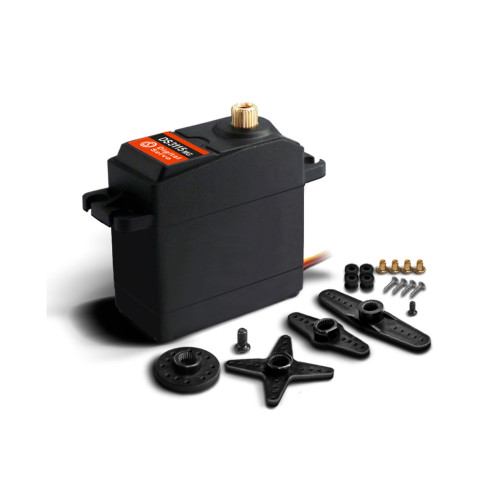

DSSERVO DS3115 - Compact RC Digital Servo with 17kgcm Torque
Features:
- Durable 3-pole motor with precision gearing
- Dual ball bearings for reliable operation
- Up to 17kgcm stall torque at 6.8V
- Compact size - ideal for 1/10 RC models
- PWM-compatible with 3µsec deadband
- Not waterproof - recommended for dry conditions
Technical Specifications:
| Voltage: | 5.0V | 6.8V |
| Speed: | 0.16 sec/60° | 0.14 sec/60° |
| Stall Torque: | 15 kgcm | 17 kgcm |
| Motor: | 3-pole | |
| Gear Ratio: | 275 | |
| Type: | Digital (PWM) | |
| Control Frequency: | 50–330Hz | |
| Bearings: | Dual | |
| Dimensions: | 40 × 20 × 40.5mm | |
| Weight: | 60.0g | |
| Rotation Range: | 180° (500–2500µs) | |
| Waterproof: | No | |
